With the chain gap adjustment gauge by SRAM you can align your rear derailleur correctly.
On a full suspension mountain bike, first bring the chassis in SAG. Place the template on the upper pulley. Then turn the B-adjust screw on the rear derailleur until the longest teeth of the largest cassette sprocket are aligned with the sprocket outline of the tool.

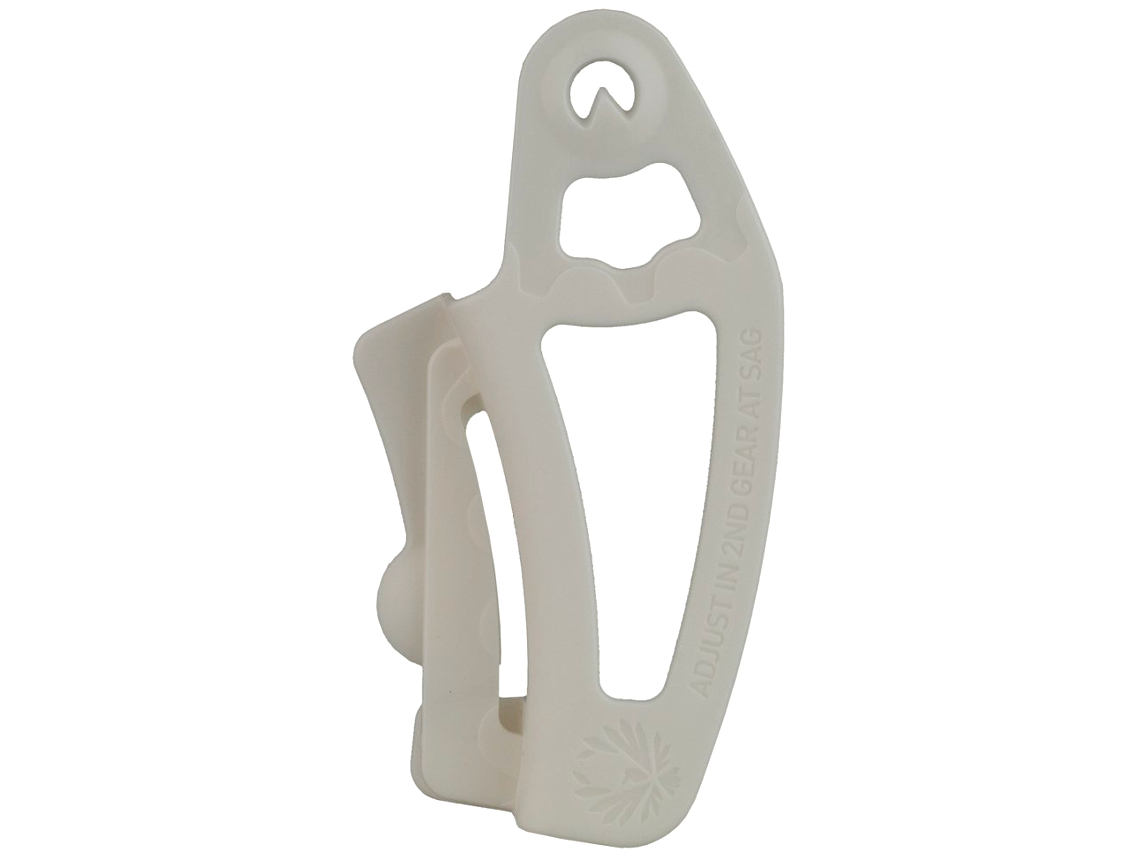

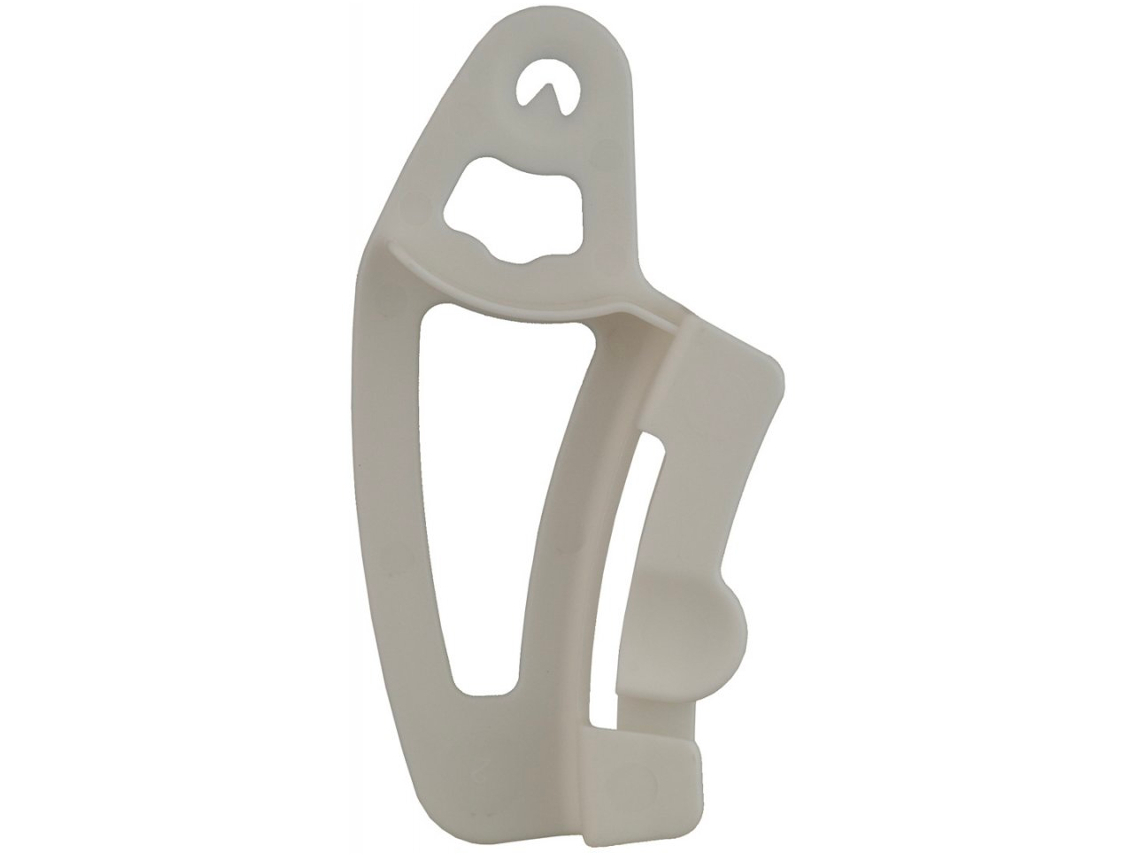

The template ” Eagle universal” is handled slightly differently: Put the chain on the second largest sprocket and place the template on the largest sprocket with the arrow pointing towards the upper derailleur pulley. Then turn the adjusting bolt B on the rear derailleur until the arrow on the template points exactly to the centre of the axle of the upper derailleur pulley.
Compatibility

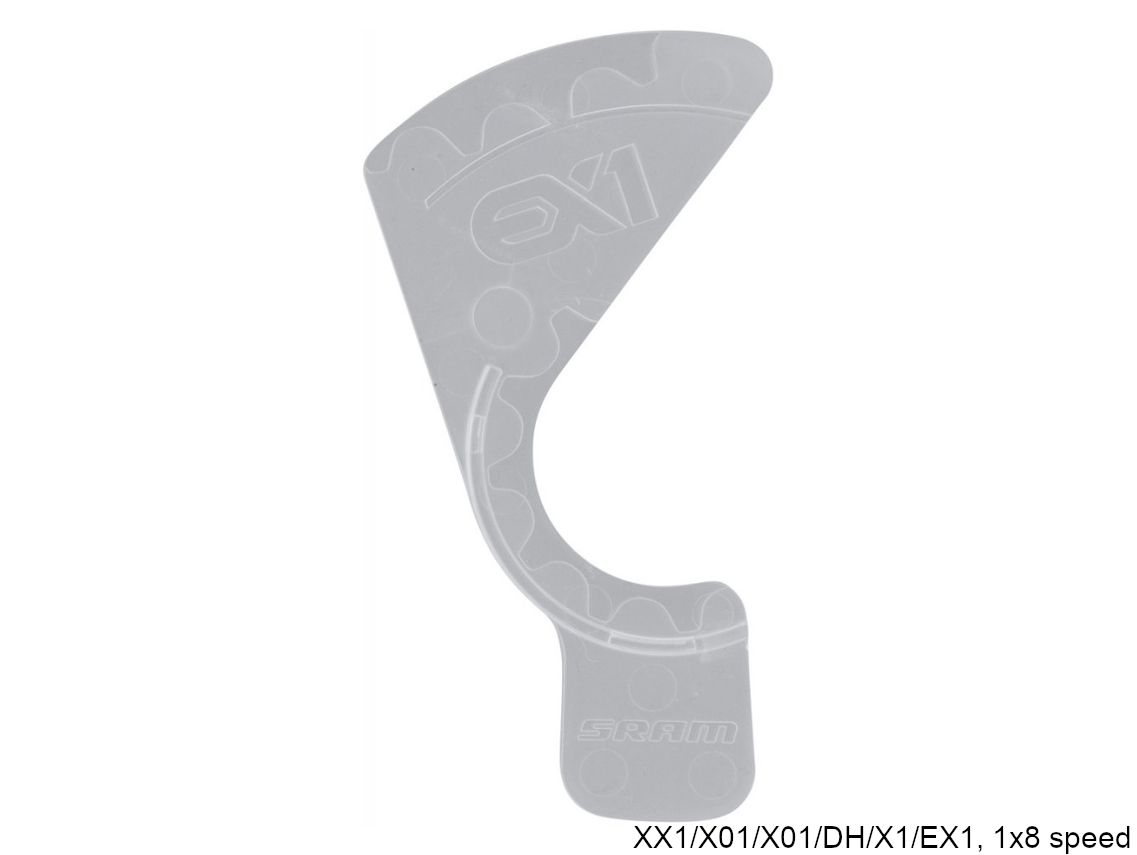

1×8-speed: XX1, X01, X01 DH, X1, EX1, 1×8-speed drivetrains
Mechanical 1×12/11/10/7: Eagle 10 – 50 teeth (mechanical), mechanical 1×12-, 1×11-, 1×10-, 1×7-speed drivetrains

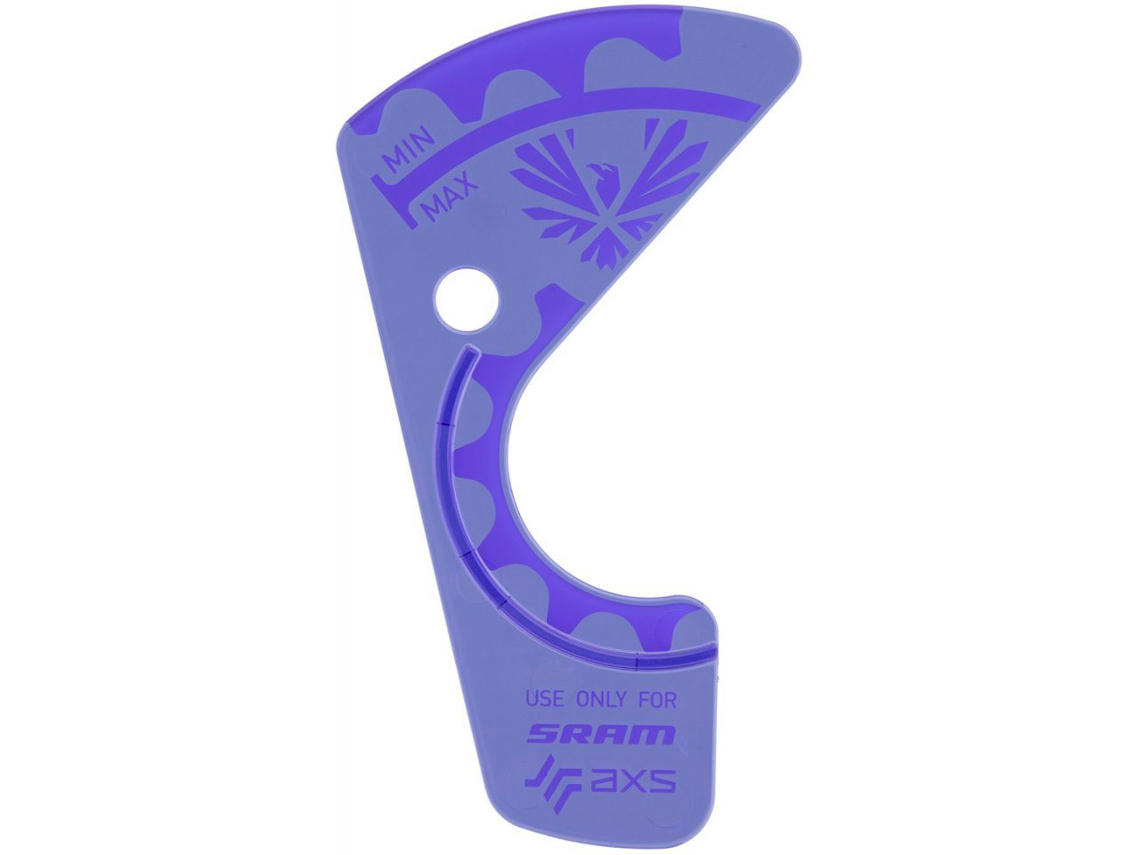

AXS MTB: Eagle AXS
Eagle universal: for all Eagle and Eagle AXS 12-speed (10-50/10-52)
AXS Road 26- 33: Red/Force eTap AXS 26 – 33 teeth

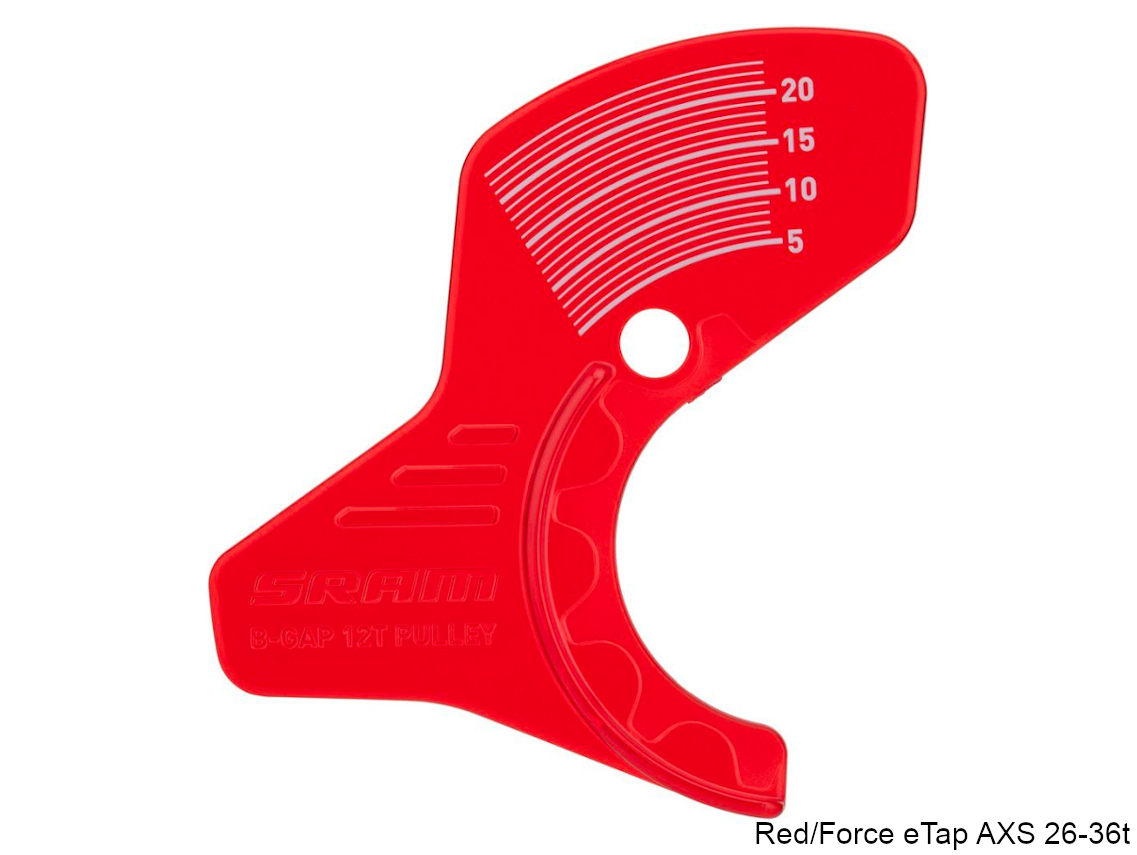

AXS Road 26-36: Red/Force eTap AXS 26 – 36 teeth
Specifications
| Function | Rear derailleur alignment |
|---|---|
| Type | Special Tool |
| Material | Synthetic |
